The Old Lakebed Under Your Oshkosh Driveway

Almost everything written about driveway sealcoating treats asphalt as though it exists on its own, as a surface that wears out from sunlight and tires. In most of the country that is a reasonable simplification. In Oshkosh it is not, because the largest single influence on how long a driveway lasts here is not on top of the pavement at all. It is underneath it, and it was put there by a lake that drained thousands of years ago.

This guide explains what that lake left behind, why it makes water behave differently in Oshkosh than in a town twenty miles inland, and what that means for the practical decisions a property owner actually faces. Some of it argues for spending money. Some of it argues against it, because there are Oshkosh driveways where sealcoating is a waste and the honest answer is to say so.

What Glacial Lake Oshkosh left under your driveway

When the last ice sheet withdrew from east-central Wisconsin it did not simply melt away and leave dry land. The retreating ice dammed drainage and ponded meltwater into a series of large glacial lakes, and one of the biggest of them stood over this basin. Geologists call it Glacial Lake Oshkosh. For as long as it existed, every particle of fine sediment carried into it settled quietly to the bottom, sorted by size, and built up into a thick bed of clay.

Lake Winnebago is what remains of it, a shallow remnant sitting in a much larger basin that was once entirely underwater. The land Oshkosh is built on is the exposed floor of the old lake. This is not an abstraction you have to take on faith either, because the soil survey records it directly. The USDA maintains a soil series named Oshkosh, and its official description states that it formed in a thin mantle of loess or other silty deposits over the underlying clayey lacustrine deposits, on glacial lake basins and stream terraces.

The numbers in that description are what matter. The particle-size control section of the Oshkosh series averages 60 to 85 percent clay, with less than 10 percent fine sand or coarser. In soil taxonomy it falls into the very-fine class. Its permeability is rated slow or very slow. If you set out to design a subgrade that would give asphalt trouble in a cold climate, you would have a hard time doing better than that.

Clay that holds water instead of passing it

It helps to be concrete about what slow permeability means at the scale of a driveway. Under sand or gravel, rain that reaches the base course keeps going. It moves down through the subgrade and away, and by the time the temperature drops the base is damp rather than saturated. Under clay with 60 to 85 percent fines, there is effectively no downward path. Water that arrives in the base has to leave the way it came in, by evaporating back out through the surface, or it does not leave at all.

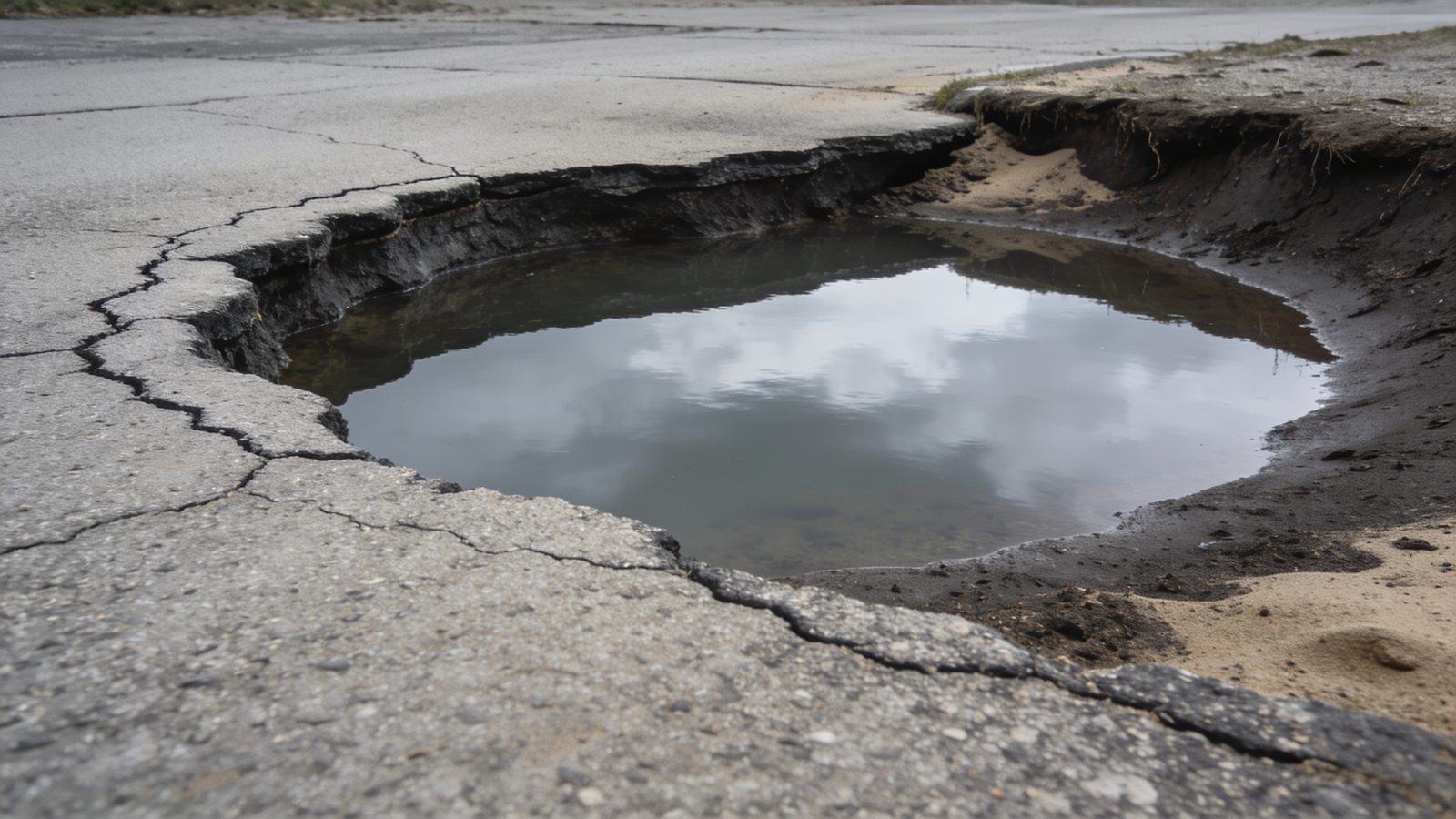

This is why grading and drainage matter more in Oshkosh than the specification of the asphalt does. A driveway laid on a good crown over lakebed clay will shed most of what falls on it before it can get underneath. A driveway with a low spot will pond, and the ponded water will find its way through whatever cracks and porous areas exist, and there it will stay. Two identical driveways, same contractor, same mix, same year, will be in visibly different condition a decade later purely on the strength of which one drains.

The clay does something else too. The Oshkosh series description notes many slickensides in the subsoil horizons, which are the polished surfaces that form when clay shrinks and swells against itself. Soil that shrinks and swells does not hold still under a pavement. It moves as it wets and dries, quite apart from anything the frost does, and pavement laid over it has to accommodate that movement or crack.

The water table that sits a foot down

The lower ground around Lake Winnebago has a further problem, and it is the one that catches people out. The Poygan series, formed in clayey till and mapped widely across this part of the basin, is described by the USDA as poorly drained, with a seasonal perched high water table within a depth of one foot for long periods in most years. Its control section averages 35 to 60 percent clay and its permeability is rated slow.

Put that next to how a driveway is actually built. A residential asphalt driveway typically has a compacted aggregate base six to ten inches deep beneath two to three inches of asphalt. If the perched water table is sitting at twelve inches, the bottom of that base is at or near the water line for weeks at a stretch. The base is not draining into anything. It is a sponge sitting in a saucer.

Not every property in Oshkosh is on Poygan soils, and elevation within the city varies enough that some driveways are in a much better position than others. But the general condition holds across the lowland: this is a place where water is never far below the surface, in a basin that a very large watershed drains toward, around a lake that is Wisconsin's largest and famously shallow. Assume the water is close unless you have reason to think otherwise.

Eighteen inches of frost and nowhere for the water to go

Now the winter arrives and acts on all of that. WisDOT will not issue a frozen road declaration until frost has reached a depth of at least 18 inches below the pavement surface, which tells you what depth of freezing the state considers routine here. Its long-run averages place that declaration from about December 22 to March 4. For those ten weeks or so, the ground under an Oshkosh driveway is frozen well below the base course, and every bit of water trapped in the clay has frozen with it and expanded.

Expanding ice has to put the volume somewhere, and the only direction with anything soft above it is up. That is frost heave, and it is why driveways here lift over winter and why a crack that was hairline in November can be a quarter inch wide in February. On soil with high clay content and a shallow water table there is more water available to freeze, so there is more heave.

The thaw is worse than the freeze. WisDOT describes the mechanism plainly in its guidance on spring weight restrictions: as thawing occurs, the moisture cannot drain downward due to the frozen soil below, and this trapped moisture creates instability in the pavement structure. The top thaws first, the deeper ground stays frozen, and for several weeks the pavement is riding on saturated, unsupported material. This is why the state posts spring weight limits from an average of March 9 to May 9 and why potholes in Oshkosh appear in March rather than January.

There is one more detail worth knowing, because it explains why the surface takes more of this than the air temperature suggests. WisDOT notes that daytime air temperatures in the twenties and thirties, with sun on an asphalt surface, can produce pavement temperatures in the fifties. The pavement is cycling through freezing far more often than a thermometer on your porch would indicate, and every one of those extra cycles works at the cracks.

What you can actually do about a base you cannot replace

The honest starting point is that you are not going to fix the subgrade. Nobody is excavating four feet of lakebed clay out from under a driveway and replacing it, and no product applied to the surface changes what is happening at twelve inches. What you can do is control how much water gets into the base in the first place, because the amount of water available to freeze is the one variable genuinely within reach.

That makes the priority order clear and slightly different from the standard advice. First, fix where water arrives: downspouts discharging onto or beside the pavement, low spots that pond, edges with no curb where runoff enters sideways, and grades that send water toward the driveway rather than away. This costs little and is worth more than any coating. Second, close the entry points, which means hot rubber crack filling on anything over about a quarter inch, done before winter rather than after. Third, keep the surface non-porous with sealcoating on a two to three year rotation, so that rain runs off rather than soaking through.

The corollary is knowing when to stop. If a driveway flexes underfoot, if alligator cracking has spread across a large area, or if water ponds and stays, the base has already lost its bearing strength. Sealer over that condition is a cosmetic purchase with a life measured in months, and any contractor who sells it without mentioning the flexing is not doing you a service. At that point the money belongs in patching the failed areas or in a rebuild that corrects the grade and the base, which is the only permanent answer to a lakebed drainage problem.

The reason this is worth the attention is that the maintenance path is cheap and the alternative is not. Filling cracks and sealing on schedule is measured in a few hundred dollars every couple of years, as the cost page sets out. Rebuilding a driveway is measured in thousands. In a place where the ground is working against the pavement every single winter, the interval you keep is most of what decides which of those two you end up paying.
